Dehumidifying Dryer MEDICAL

Dewpoint and temperature documentation
with “Data Log” module

Based on Dehumidifying dryer E35



Properties:
  • Monitoring and documentation of dewpoint
  • Monitoring and documentation of temperature
  • Processor-controlled and battery-buffered data collection
  • Sampling intervals freely selected
  • Memory data read using standard PC running Microsoft Windows ®
  • Data may be converted to graph form or imported to spreadsheet
  • All contact surfaces are made with V2A stainless steel
    with an Ra < 0.8 μm

The MEDICAL dryers series at Amboss+Langbein includes monitoring and documentation of dewpoint and temperature in the dryer vessel as the delivery standard.



Noteworthy with the MEDICAL dryer series

  • Batch drying
  • Pressure washer cleaning for absolute particle-free preparation
    for the next batch
  • 200 l vessel and heating element made entirely of V2A
    and V4A stainless steel
  • Interchangeable vessel for speedy, efficient material
    change and easy cleaning
  • Capacity: c. 35 kg PA/h
  • Station capacity: c. 70 kg PA/h

Dehumidifying Dryer MEDICAL

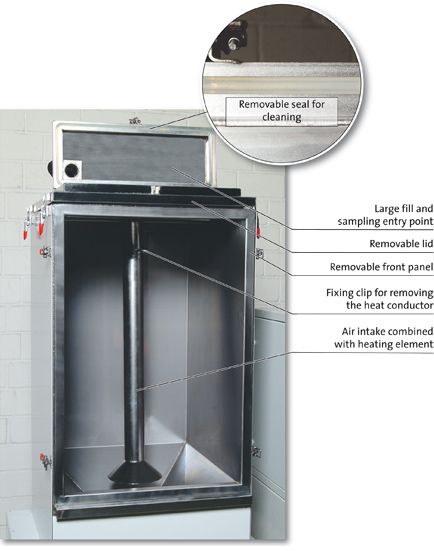

All contact surfaces are made with V2A stainless
steel with an Ra < 0.8 μm
........................................................................

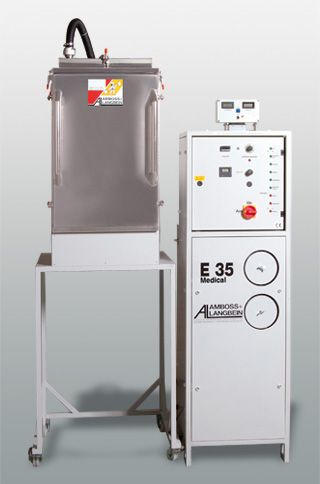

Dehumidifying dryer MEDICAL E 35
with 200 l vessel
................................................................................



> Brochure – PDF Download
